Package org.sm.smtools.math.quadmapping

Class QuadToQuadMapping

java.lang.Object

org.sm.smtools.math.quadmapping.QuadToQuadMapping

public final class QuadToQuadMapping
extends Object

The QuadToQuadMapping class provides a perspective mapping between two convex quadrilaterals.

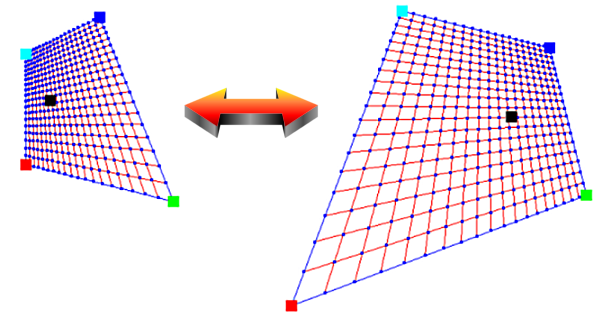

This class maps 2D-data points between two convex quadrilaterals:

Note: it is assumed that the X axis points to the right and the Y axis points upwards.

Note that this class cannot be subclassed!

Version:

09/12/2004

Author:

Sven Maerivoet

See Also:

• Quadrilateral
• QuadMapping

Constructor Summary

Constructors

Constructor	Description
QuadToQuadMapping(QuadMapping quad1Mapping, QuadMapping quad2Mapping)	Constructs a QuadToQuadMapping object based on the two perspective mappings between quadrilaterals.
QuadToQuadMapping(Quadrilateral q1, Quadrilateral q2)	Constructs a QuadToQuadMapping object based on the two specified quadrilaterals.

Method Summary

Modifier and Type	Method	Description
Point2D.Double	mapQuad1ToQuad2(double x, double y)	Maps a 2D-data point in the first quadrilateral to a 2D-data point in the second quadrilateral.
Point2D.Double	mapQuad1ToQuad2(Point2D.Double p)	Maps a 2D-datapoint in the first quadrilateral to a 2D-data point in the second quadrilateral.
Point2D.Double	mapQuad2ToQuad1(double x, double y)	Maps a 2D-data point in the second quadrilateral to a 2D-data point in the first quadrilateral.
Point2D.Double	mapQuad2ToQuad1(Point2D.Double p)	Maps a 2D-data point in the second quadrilateral to a 2D-data point in the first quadrilateral.
void	set(QuadMapping quad1Mapping, QuadMapping quad2Mapping)	Sets the perspective mapping based on the two perspective mappings between quadrilaterals.

Methods inherited from class java.lang.Object

clone, equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Details

QuadToQuadMapping

public QuadToQuadMapping(QuadMapping quad1Mapping,
 QuadMapping quad2Mapping)

Constructs a QuadToQuadMapping object based on the two perspective mappings between quadrilaterals.

Parameters:

quad1Mapping - the first perspective mapping to use

quad2Mapping - the second perspective mapping to use

See Also:

• QuadToQuadMapping(QuadMapping,QuadMapping)
• set(QuadMapping,QuadMapping)

QuadToQuadMapping

public QuadToQuadMapping(Quadrilateral q1,
 Quadrilateral q2)

Constructs a QuadToQuadMapping object based on the two specified quadrilaterals.

Parameters:

q1 - the first quadrilateral to use for the perspective mapping

q2 - the second quadrilateral to use for the perspective mapping

See Also:

• QuadToQuadMapping(QuadMapping,QuadMapping)
• set(QuadMapping,QuadMapping)

Method Details

set

public void set(QuadMapping quad1Mapping,
 QuadMapping quad2Mapping)

Sets the perspective mapping based on the two perspective mappings between quadrilaterals.

Parameters:

quad1Mapping - the first perspective mapping to use

quad2Mapping - the second perspective mapping to use

mapQuad1ToQuad2

public Point2D.Double mapQuad1ToQuad2(Point2D.Double p)

Maps a 2D-datapoint in the first quadrilateral to a 2D-data point in the second quadrilateral.

Parameters:

p - the 2D-data point in the first quadrilateral

Returns:

the corresponding 2D-data point in the second quadrilateral

mapQuad1ToQuad2

public Point2D.Double mapQuad1ToQuad2(double x,
 double y)

Maps a 2D-data point in the first quadrilateral to a 2D-data point in the second quadrilateral.

Parameters:

x - the x coordinate of the 2D-data point in the first quadrilateral

y - the y coordinate of the 2D-data point in the first quadrilateral

Returns:

the corresponding 2D-data point in the second quadrilateral

mapQuad2ToQuad1

public Point2D.Double mapQuad2ToQuad1(Point2D.Double p)

Maps a 2D-data point in the second quadrilateral to a 2D-data point in the first quadrilateral.

Parameters:

p - the 2D-data point in the second quadrilateral

Returns:

the corresponding 2D-data point in the first quadrilateral

mapQuad2ToQuad1

public Point2D.Double mapQuad2ToQuad1(double x,
 double y)

Maps a 2D-data point in the second quadrilateral to a 2D-data point in the first quadrilateral.

Parameters:

x - the x coordinate of the 2D-data point in the second quadrilateral

y - the y coordinate of the 2D-data point in the second quadrilateral

Returns:

the corresponding 2D-data point in the first quadrilateral
